| GENERAL INFO |
|
| Brand |
CDA |
| Trade symbol PL (Amica HQ) |
HN6013FR |
| Logo on product |
CDA |
| Customer |
CDA United Kingdom |
| Country of origin |
PL |
| Product subtype |

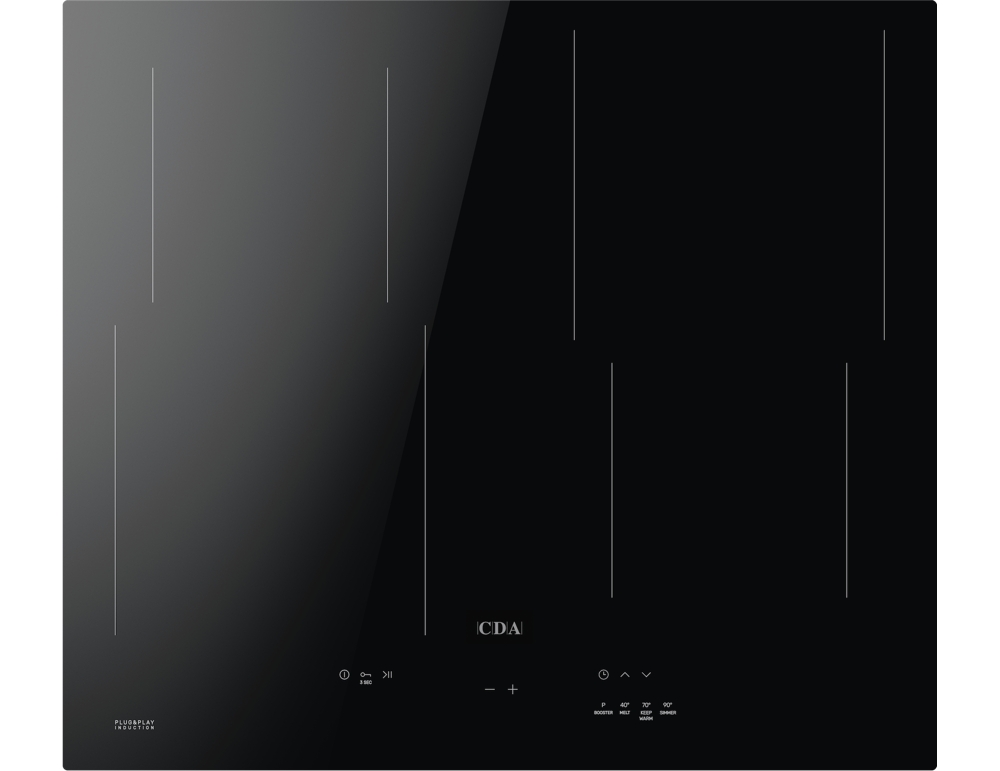

Induction Hob |
| MAIN CHARACTERISTICS |
|
| Display type |
LED |
| Display colour |
Red |
| TECHNICAL DATA |
|
| Power supply voltage [V] |
220-240V |
| Frequency [Hz] |
50Hz / 60Hz |
| Total power of hob [kW] |
2.8 |
| Connection type |
1N~220-240 V |
| Connection cable |
Power cord with plug |
| Connection cable length [cm] |
130 |
| HOB MAIN CHARACTERISTICS |
|
| Hob type |
Induction |
| Number of heating elements |
4 |
| Control type |
+/- |
| Control position |
Front |
| Minimal worktop thickness required [mm] [ - , SC, BC] |
12mm / 28mm / 28mm |
| Minimal air gap below hob required [mm] |
10 |
| HOB ZONES |
|
| Left front zone type FL |
Induction |
| Left front zone size FL [cm] |
21 |
| Left front zone power FL [kW] |
2/2,8 |
| Left rear zone type RL |
Induction |
| Left rear zone size RL [cm] |
16 |
| Left rear zone power RL [kW] |
1,4/2,1 |
| Right front zone type FR |
Induction |
| Right front zone size FR [cm] |
16 |
| Right front zone power FR [kW] |
1,4/2,1 |
| Right rear zone type RR |
Induction |
| Right rear zone size RR [cm] |
21 |
| Right rear zone power RR [kW] |
2/2,8 |
| HOB FEATURES |
|
| Booster |
4 |
| Automatic zone activation |
Yes |
| Number of power levels |
14 |
| Bridge zones |
0 |
| Autobridge |
No |
| Automatic pot position detection |
Yes |
| Residual heat indicator |
Yes |
| Child lock |
Yes |
| Heat maintaining |
Yes |
| Pause function |
Yes |
| 3 warming levels |
Yes |
| Direct Touch |
Yes |
| Timer |
Yes |
| Minute minder |
Yes |
| Slider control |
No |
| Power management |
Yes |
| Plug and play |
Yes |
| Hood control |
No |
| Small object detection |
Yes |
| Overheat detection |
Yes |
| Overflow detection |
Yes |
| Time limit security system |
Yes |
| Temperature limiter |
Yes |
| LOGISTIC DATA |
|
| EAN code |
5055833407958 |
| Net width [mm] |
592 |
| Net height [mm] |
49 |
| Net depth [mm] |
522 |
| Gross width [mm] |
615 |
| Gross height [mm] |
125 |
| Gross depth [mm] |
700 |
| Gross weight [kg] |
8.95 |
| Net weight [kg] |
7.65 |
| Pallet quantity |
20 |
| Cut out size - width [mm] |
560 |
| Cut out size - depth [mm] |
490 |
| In-furniture depth [mm] |
44 |
| PACKAGE INFORMATION |
|
| Packaging weight - paper/carton in total [g] |
790 |
| Packaging weight - plastics in total [g] |
480 |
| |
 |
