DISCONTINUED MODEL

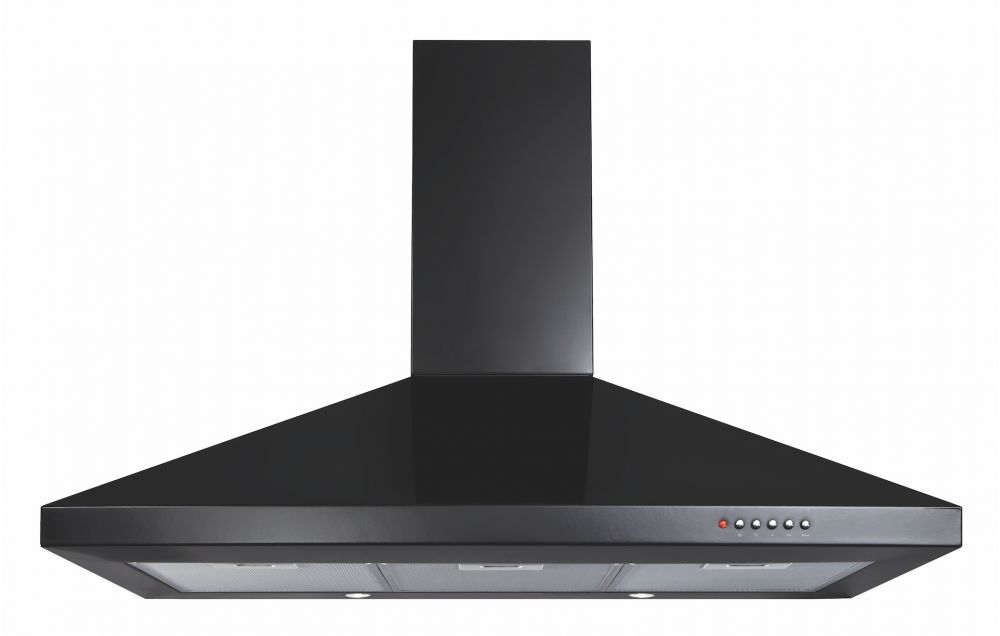

CDA ECH91 90cm Cooker Hood in Black or Stainless Steel
The ECH chimney extractor has a contemporary design which allows it to be a main focal point in any kitchen. It has 3 speeds with push button control, a twin fan motor and built in LED lights for good illumination.
Features
- Ducted/re-circulating installation
- 3 speeds
- Type of grease filter: Aluminium grease filters
- Twin fan motor
- Glass light diffuser
- Lighting: 2 x 3W LED lights
- Push button control
Available in
Technical Specification
- Required height over gas hobs: 700 mm (min)
- Required height over electric hobs: 600 mm (min)
- Power supply: 3 A
- Outlet diameter: 150mm mm
- Motor Input: 140.0000 W
- Rated electrical power: 146 W
Optional Accessories
- Ducting kit code: AED61/63/64
- Charcoal filter for re-circulation: CHA24 (pack of 2)
Filters
- Number of grease filters: 2
- Number of charcoal filters (optional): 2
- Ducting kit: AED61/63/64
- Charcoal filter code: CHA24
Extraction Rates And Noise
- Extraction rate at first speed: 265 m3/hr
- Noise level at first speed: 60 dBA
- Extraction rate at second speed: 323 m3/hr
- Noise level at second speed: 62 dBA
- Extraction rate: 427 m3/hr
- Noise level: 64 dBA
- Extraction rate at third speed: 427 m3/hr
- Noise level at third speed: 64 dBA
Lighting
- Number of lights: 2
- Type of light: LED
