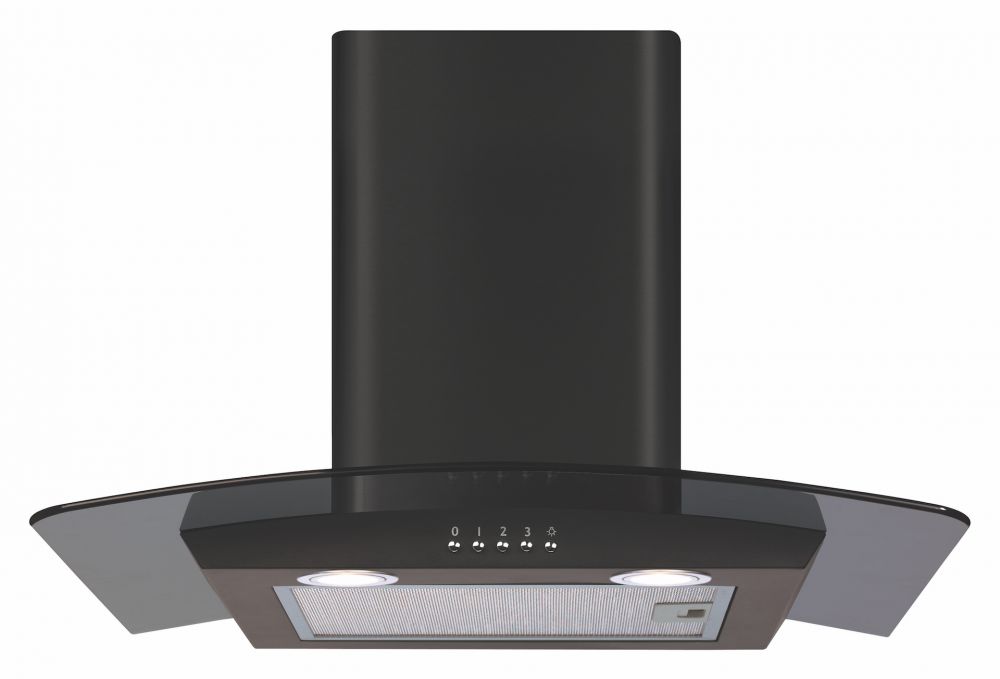

Cda ECP62BL 60cm Curved Glass Cooker Hood in Black Item Code: ECP62BL
£209.00
‏



Features

  • Ducted/re-circulating installation
  • 3 speeds
  • Type of grease filter: Aluminium grease filters
  • Push button control

Available in

  • Stainless steel
  • Black

Technical Specification

  • Required height over gas hobs: 700 mm (min)
  • Required height over electric hobs: 600 mm (min)
  • Power supply: 3 A
  • Mains lead length: 1 m
  • Mains lead rating: H05VV-F m
  • Protection class: Class I
  • Outlet diameter: 120mm/150mm mm
  • Outlet diameter: It is best to use the AED6 (150mm) ducting kit rather than the AED5 (120mm) with the adaptor. This keeps noise levels to a minimum. mm
  • Outlet diameter: 150mm with a 120mm reducer mm
  • Rated electrical power: 104 W

Optional Accessories

  • Ducting kit code: 120mm, AED 51/53/54
  • Ducting kit code: 150mm, AED 61/63/64
  • Charcoal filter for recirculation : 0

Fitting Notes

  • Fitting note: please ensure that you check the ceiling height is sufficient to allow the required clearance between the hob and extractor

Filters

  • Charcoal filters: CHA12 (pack of 1)
  • Number of layers: 4
  • Number of grease filters: 1
  • Number of charcoal filters (optional): 1
  • Ducting kit: AED61/63/64 or AED51/53/54 with adaptor

Extraction Rates And Noise

  • Extraction rate at first speed: 218 m3/hr
  • Noise level at first speed: 50 dBA
  • Extraction rate at second speed: 302 m3/hr
  • Noise level at second speed: 58 dBA
  • Extraction rate: 391 m3/hr
  • Noise level: 60 dBA
  • Extraction rate at third speed: 391 m3/hr
  • Noise level at third speed: 60 dBA

Lighting

  • Type of light: 2 x 2W LED
  • Wattage of light: 4.0000 W
  • Additional lighting: 0



Features

  • Ducted/re-circulating installation
  • 3 speeds
  • Type of grease filter: Aluminium grease filters
  • Push button control

Available in

  • Stainless steel
  • Black

Technical Specification

  • Required height over gas hobs: 700 mm (min)
  • Required height over electric hobs: 600 mm (min)
  • Power supply: 3 A
  • Mains lead length: 1 m
  • Mains lead rating: H05VV-F m
  • Protection class: Class I
  • Outlet diameter: 120mm/150mm mm
  • Outlet diameter: It is best to use the AED6 (150mm) ducting kit rather than the AED5 (120mm) with the adaptor. This keeps noise levels to a minimum. mm
  • Outlet diameter: 150mm with a 120mm reducer mm
  • Rated electrical power: 104 W

Optional Accessories

  • Ducting kit code: 120mm, AED 51/53/54
  • Ducting kit code: 150mm, AED 61/63/64
  • Charcoal filter for recirculation : 0

Fitting Notes

  • Fitting note: please ensure that you check the ceiling height is sufficient to allow the required clearance between the hob and extractor

Filters

  • Charcoal filters: CHA12 (pack of 1)
  • Number of layers: 4
  • Number of grease filters: 1
  • Number of charcoal filters (optional): 1
  • Ducting kit: AED61/63/64 or AED51/53/54 with adaptor

Extraction Rates And Noise

  • Extraction rate at first speed: 218 m3/hr
  • Noise level at first speed: 50 dBA
  • Extraction rate at second speed: 302 m3/hr
  • Noise level at second speed: 58 dBA
  • Extraction rate: 391 m3/hr
  • Noise level: 60 dBA
  • Extraction rate at third speed: 391 m3/hr
  • Noise level at third speed: 60 dBA

Lighting

  • Type of light: 2 x 2W LED
  • Wattage of light: 4.0000 W
  • Additional lighting: 0
